Controllers and Amplifiers




Controllers and Amplifiers

SMAC supplies a range of single and multi-axis controllers together with stand alone amplifiers and stepper driven drivers. Controllers are programmed by mnemonic type command instructions via an RS-232 interface into NVRAM and allows code to be stored in non-volatile RAM, which is then used to enable movements to be made in three different modes. They require no supplementary software.

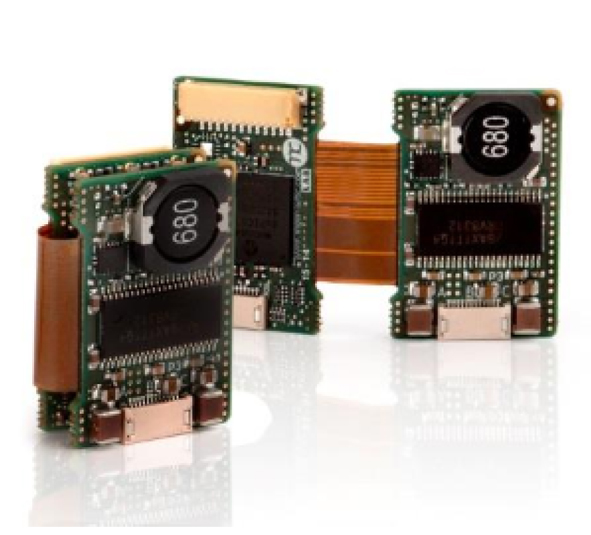

CBC Controller - Integrated Driver & Controller





1

Ambient operating temperature

0C to 70C (motor housing temp.)

2

LED display (GREEN)

Power on, Fault, Digital output

3

Communication interface

RS-232

4

2 PLC level, non-isolated digital input

Single end 24V level input, impedance 140k, 48V tolerant

5

2  Open drain digital output

500mA sink capacity

6

1  Analog input (single end)

0 -5V

7

Power supply input

8Vdc – 48Vdc

8

Encoder interface

TTL differential

9

Motor interface

Brush, and Brushless

10

Maximum peak phase current

4 A (rms) @ 1s

11

Maximum continuous phase current

1.5 A (rms)

12

Flash memory

1024Kb

13

Protection

Over temperature, over current, Overload, Reverse polarity connection







cbc integrated driver and controller

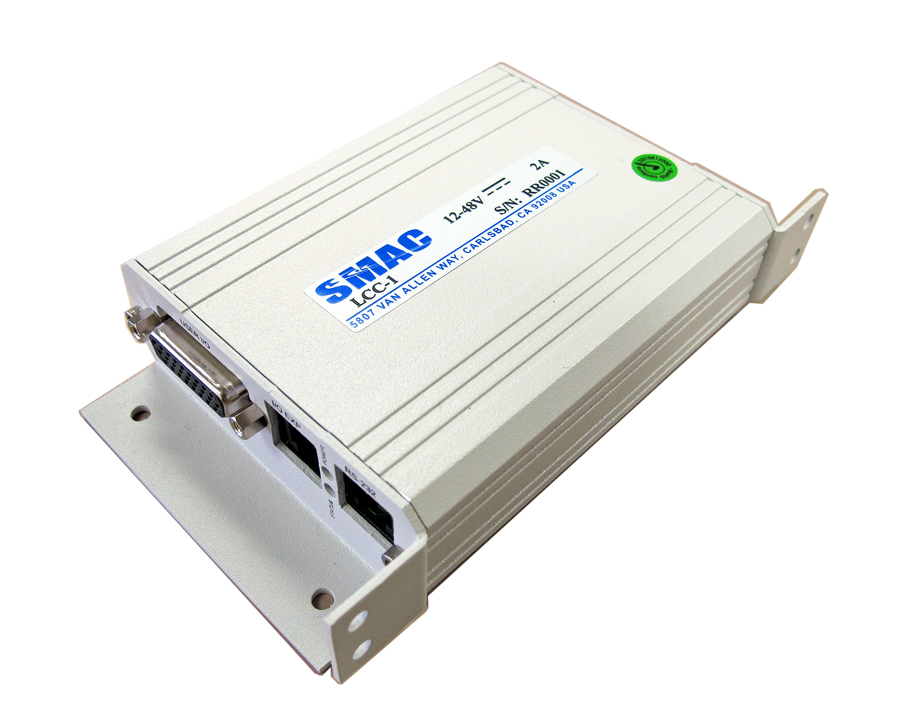

LCC-10 Single Axis Brushless Controller

Built-in amplifier Easy expansion to multi-axis

Modes:
  • Position
  • Velocity
  • Force
1 Port per axis
RS232 up to 115200 bps
CAN bus 2.0B up to 1MB/s

LAC-1 Single Axis Controller

LAC1
The LAC-1 is a single axis controller with eight TTL I/O channels, three analog I/P channels and RS232 interface. It comes with a built-in amplifier.

Modes:
  • Position
  • Velocity
  • Force

LAC-26 Dual Axis Controller

  LAC-26 dual axis controller
Dual axis controller with three opto-isolated input, two opto-isolated output, one analog output/axis, and RS232 interface. 1st axis single phase bruch, 2nd axis brush/brushless motor. The LAC-26 can be used to control either a single linear and rotary actuator or alternatively two independent linear actuators. It comes with a built-in amplifier.

Modes:
  • Position
  • Velocity
  • Force
  • Gearing

LAC-25 Dual Axis Controller

LAC25 dual axis controller
Dual axis controller with four opto-isolated I/O channels, two analog I/O channels and RS232 interface. The LAC-25 can be used to control either a single linear and rotary actuator or alternatively two independent linear actuators. It is also necessary for grippers. It comes with a built-in amplifier.

Modes:
  • Position
  • Velocity
  • Force
  • Gearing

LAC-45 Four Axis Controller

LAC45
Independent or coordinated 4 axis motion, 8 I/P, 8 O/P, Opto-isolated general purpose I/O’s, 6 analog I/P, 4 analog O/P, RS232 Interface. It comes with a built-in amplifier.

Modes:
  • Position
  • Velocity
  • Force
  • Gearing

LAA-5 Single Axis Amplifier

LAA5
A stand alone single axis amplifier which can be used in conjunction with any proprietary controller. It provides +/-10 Volt I/P, 3 Amp O/P.

LAD-1 Smart Driver

LAD1
The LAD1 is used to convert stepper inputs to 3 Amp servo output. This is particularly useful wherever a SMAC unit is retrofitted to or integrated into a stepper-driven machine. RS232 Interface.

MIO E-8/8 [MIO 16-R2] Channel I/O Expansion Module

MIO E-8/8
Expansive I/O modual, 8 input, 8 output, Opto-isolated general purpose I/O. If more I/O channels are required, then the MIO can be linked to either the LAC1 or LAC25 to give 16 I/O channels.

Please note: This replaces the MIO16-R2

MAAC4-7 Four Axis Controller

MAAC4-7 Four Axis Controller
4 axis controller brushed/ brushless, integrated high end amplifier, advanced math capability, circular interpolation, teach path function, additional controllers can be added to work together on systems requiring more than 4 axes.

Ethernet Interface, RS-232 Interface, 8 TTL I/O’s
